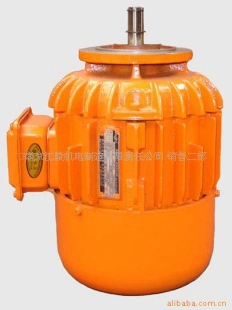

主要技術性能數據
| 型號 | 功率 kW | 額定電壓 V | 額定電流 A | 額定轉速 r/min | 起動轉矩 | 最大轉矩 | 起動電流 A | 效率 % | 功率因素 cosφ | 靜制動力矩 N.m | 轉動慣量 N.㎡ |
| 額定轉矩 | |||||||||||
| ZDY11-4 | 0.2 | 380 | 0.72 | 1380 | 2.0 | 2.0 | 4 | 65 | 0.70 | 0.58 | 0.015 |
| ZDY12-4 | 0.4 | 380 | 1.25 | 1380 | 2.0 | 2.0 | 7 | 67 | 0.70 | 1.42 | 0.017 |
| ZDM12-4 | 0.5 | 380 | 1.60 | 1320 | 2.0 | 2.0 | 5.1 | 67 | 0.72 | 4.9 | 0.017 |
| ZDY21-4 | 0.8 | 380 | 2.4 | 1380 | 2.5 | 2.5 | 13 | 70 | 0.70 | 2.74 | 0.074 |
| ZDY21-4D | 0.8 | 380 | 2.4 | 1380 | 2.5 | 2.5 | 13 | 70 | 0.70 | 2.74 | 0.074 |
| ZDY22-4 | 1.5 | 380 | 4.3 | 1380 | 2.5 | 2.5 | 24 | 73 | 0.74 | 5.5 | 0.108 |
| ZDY22-4D | 1.5 | 380 | 4.3 | 1380 | 2.5 | 2.5 | 24 | 73 | 0.74 | 5.5 | 0.108 |
| ZDY31S-4 | 2.2 | 380 | 5.6 | 1380 | 2.2 | 2.2 | 28 | 76 | 0.79 | 15 | 0.300 |
| ZDY31-4 | 3.0 | 380 | 7.6 | 1380 | 2.2 | 2.2 | 38 | 78 | 0.80 | 21 | 0.300 |
| ZDY32-4 | 4.5 | 380 | 11 | 1380 | 2.2 | 2.2 | 55 | 80 | 0.80 | 30 | 0.331 |
| ZDY41-4 | 7.5 | 380 | 18 | 1380 | 2.2 | 2.2 | 80 | 80 | 0.80 | 50 | 0.730 |
安裝尺寸表
| 型號 | 軸伸花鍵 | E | R | N | P | d | M | D2 | L |
| ZDY11-4 | 4D-15d10×12×4c11 | 22 | 15 | 75h8 | 110 | 7 | 90 | 155 | 230 |
| ZDY11-4N | 36齒90°齒形，d=15 | 22 | 15 | 75h8 | 110 | 7 | 90 | 155 | 230 |
| ZDY12-4 | 4D-15d10×12×4c11 | 22 | 15 | 75h8 | 110 | 7 | 90 | 155 | 250 |
| ZDY12-4N | 36齒90°齒形，d=15 | 22 | 15 | 75h8 | 110 | 7 | 90 | 155 | 250 |
| ZDM12-4 | 6D-20d10×16×4c11 | 24 | 20 | 100h8 | 140 | 9 | 120 | 155 | 250 |
| ZDY21-4 | 6D-20d10×16×4c11 | 24 | 20 | 100h8 | 140 | 9 | 120 | 210 | 289 |
| ZDY21-4N | 36齒90°齒形，d=18 | 24 | 20 | 100h8 | 140 | 9 | 120 | 210 | 289 |
| ZDY21-4D | 6D-25d10×22×6c11 | 30 | 13 | 180h8 | 220 | 11 | 200 | 210 | 289 |
| ZDY22-4 | 6D-20d10×16×4c11 | 24 | 20 | 100h8 | 140 | 9 | 120 | 210 | 331 |
| ZDY22-4D | 6D-25d10×22×6c11 | 30 | 13 | 180h8 | 220 | 11 | 200 | 210 | 331 |
| ZDY22-4T | 6D-25d10×22×6c11 | 36 | 13 | 250h8 | 330 | 13 | 286 | 210 | 312 |
| ZDY31S-4 | 6D-28d10×23×6c11 | 30 | 14 | 180h8 | 250 | 15 | 215 | 273 | 383 |
| ZDY31-4 | 6D-28d10×23×6c11 | 30 | 14 | 180h8 | 250 | 15 | 215 | 273 | 383 |
| ZDY31-4T | 6D-25d10×22×6c11 | 36 | 13 | 250h8 | 330 | 13 | 286 | 273 | 337 |
| ZDY32-4 | 6D-28d10×23×6c11 | 30 | 14 | 230h8 | 300 | 15 | 265 | 273 | 407 |
| ZDY41-4 | 10D-35d10×28×4c11 | 35 | 15 | 230h8 | 300 | 15 | 265 | 328 | 457 |
