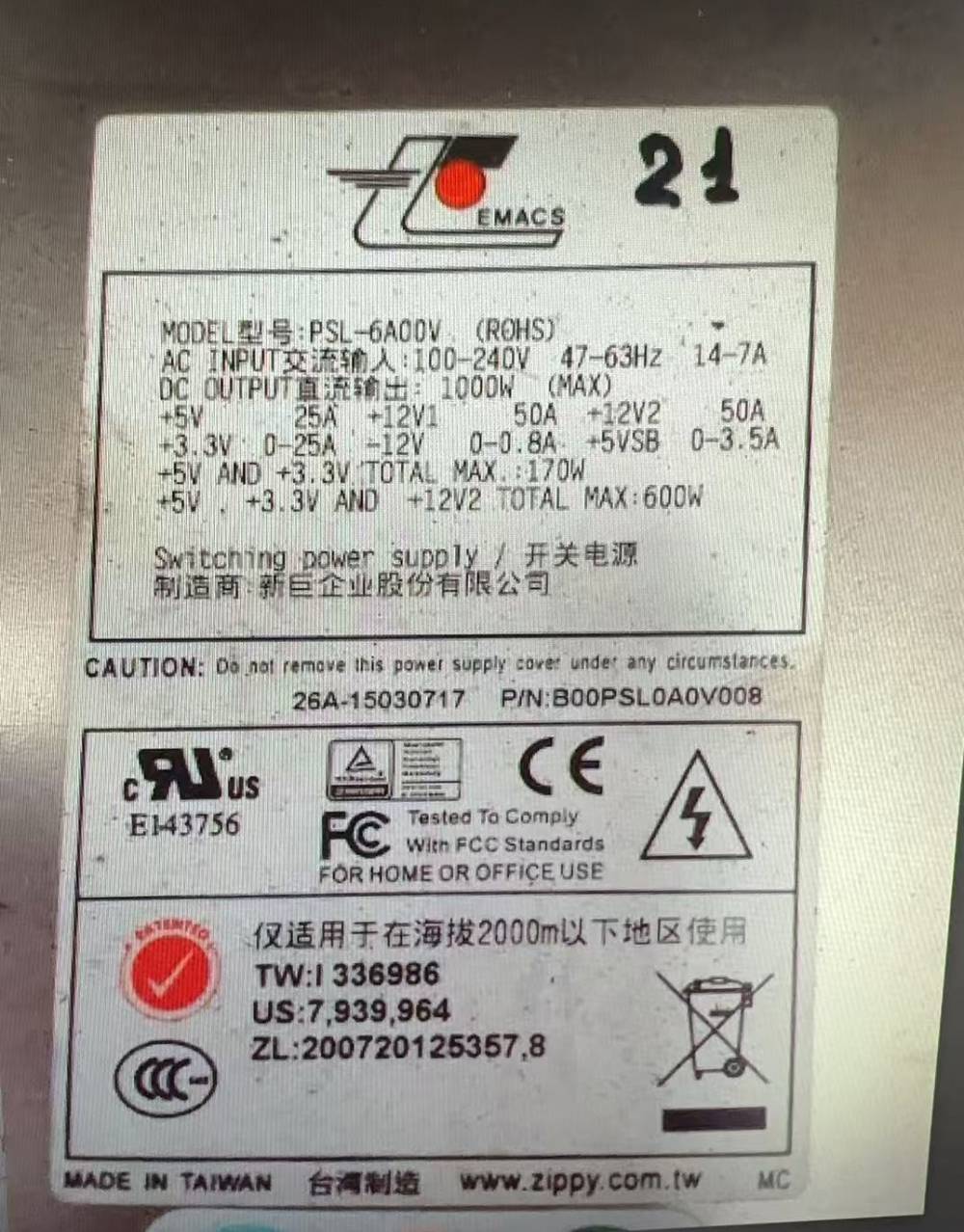

Zippy Emacs PSL-6A00V 600W 工控機 服務器電源 工業設備儀器電源TEL:13910098771
Zippy Emacs MRZ-5800K2V MRZKMA00 800W 1200W 新巨服務器冗余電源
Zippy Emacs MRW-5400V4V MRW-3400V-R MRW-5500V4V MRW-3500V-R MRW-5600V4V MRW-3600V-R 新巨MINI冗余電源MRW-6400P新巨冗余電源MRW-6400P-R MRW-3450V-R MRW-3500V-R MRW-3600V-R新巨冗余電源模塊
Zippy Emacs HU2-5860V 860W HU2-5760V 760W HU2-5660V 660W HU2-5560V 560W Server ,Workstation ,Storage System 新巨開關電源批發及電源維修
Zippy Technology MRW-5600V4V MRW-5500V4V MRW-5450V4V MRW-5400V4V (ROHS) 600W 500W 400W新巨冗余電源 工控機冗余電源 服務器冗余電源 存儲柜冗余電源 醫療設備電源 工業設備電源（含兩個EMACS MRW-3600V-R MRW-3500V-R MRW-3450V-R MRW-3400V-R (ROHS)服務器電源模塊 冗余電源模塊 熱插拔電源模塊）批發Zippy Emacs新巨全線工業電源批發及專業電源維修
Zippy Technology MRW-5600V4V MRW-5500V4V MRW-5450V4V MRW-5400V4V (ROHS) 600W 500W 400W新巨冗余電源 工控機冗余電源 服務器冗余電源 存儲柜冗余電源 醫療設備電源 工業設備電源（含兩個EMACS MRW-3600V-R MRW-3500V-R MRW-3450V-R MRW-3400V-R (ROHS)服務器電源模塊 冗余電源模塊 熱插拔電源模塊）批發Zippy Emacs新巨全線工業電源批發及專業電源維修
新巨電源MRW-5500V4V模塊電源 冗余電源 服務器電源 存儲柜電源 工控機電源MRW-3500V-R ROHS電源模塊MRW-3450V-R 開關電源 交換式電源供應器批發Zippy Emacs 臺灣新巨工業電源批發與專業電源維修
新巨電源MRW-5500V4V模塊電源 冗余電源 服務器電源 存儲柜電源 工控機電源MRW-3500V-R ROHS電源模塊MRW-3450V-R 開關電源 交換式電源供應器批發Zippy Emacs 臺灣新巨工業電源批發與專業電源維修
【Mini Redundant】MRW-5500V4V
500W
Server ,Workstation ,Storage System
185x150x86(mm)
7.28x5.91x3.39(inch)
VOLTAGE: 90 ~ 264 VAC FULL RANGE.
FREQUENCY: 47 ~ 63 Hz.
STEADY-STATE CURRENT: 8/4A AT ANY LOW/HIGH
RANGE INPUT VOLTAGE
IN CURRENT: 2*** MAX. FOR 110 VAC , 50A MAX.
FOR 220 VAC (AT 25 DEGREE C AMBIENT COLD START)
PFC: UP TO THE TARGET OF 95% @110V, FULL LOAD
| Output VoltageTD | Output Current Min. | Output Current Max. | Output Current Peak | Regulation Load | Regulation Line | Output Ripple & Noise Max.[P-P] |
| +5V | 1 | 25 |
|
±250mV | ±1% | 50mV |
| +12V | 1 | 41 |
|
±600mV | ±1% | 120mV |
| -12V | 0 | 0.8 |
|
±600mV | ±1% | 120mV |
| +3.3V | 1 | 25 |
|
±165mV | ±1% | 50mV |
| +5VSB | 0.1 | 3.5 |
|
±250mV | ±1% | 50mV |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃; STORAGE TEMPERATURE: -20℃ – 80℃
* HOLD UP TIME: 16mS MINIMUM AT NOMINAL INPUT VOLTAGE
* EFFICIENCY: TYPICAL >80% AT 115V, 25%~*** MAX LOAD
* LEAKAGE CURRENT: 3.5 mA. MAX. AT NOMINAL VOLTAGE 250VAC
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110%~160%
* OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.5~6.5V, +12V→13.2~15.6V
* OVER CURRENT PROTECTION: +3.3V→27.5~37.***, +5V→ 27.5~37.***, +12V→45.1~65.6A
* SHORT CIRCUIT PROTECTION: +12V, -12V, +5VSB
* SAFETY: TO MEET UL, TUV, CB, CCC, RFI/EMI STANDARDS
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* REMOTE ON/OFF CONTROL
* I2C FEATURES (OPTIONAL)
*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
MRW-6420P-R ROHS 420W 交換式電源供應器 開關電源 服務器電源 工控機電源 磁盤柜電源 交流電源 直流電源批發與電源維修Zippy Emacs臺灣新巨全線工業電源批發與電源維修
MRW-6420P-R ROHS 420W 交換式電源供應器 開關電源 服務器電源 工控機電源 磁盤柜電源 交流電源 直流電源批發與電源維修Zippy Emacs臺灣新巨全線工業電源批發與電源維修
HG2-6400P ATX電源 IPC-610 IPC-611 工控機電源 塔式服務器電源批發
HG2-6400P HG2-6350P HG2-6300P ATX電源IPC-610 IPC-611研華工控機電源塔式服務器電源批發與電源維修Zippy Emacs臺灣新巨全線工業電源批發與電源維修TEL:13910098771
